DIY Wood Privacy Screen

You Will Need:

• Pine decking
• Miter saw
• Wood stain
• White paint
• Drill
• Screw
• Sawhorses
• Paintbrushes

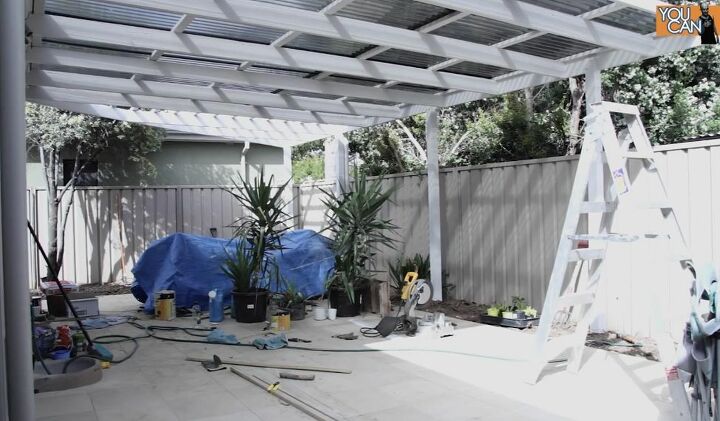

Gather Materials

       I set up my work area with the tools I would need and gathered the wood that I would be cutting to complete my project. I staged sawhorses, wood, saws, clamps, my ladder and all of the other materials to build the privacy screen.

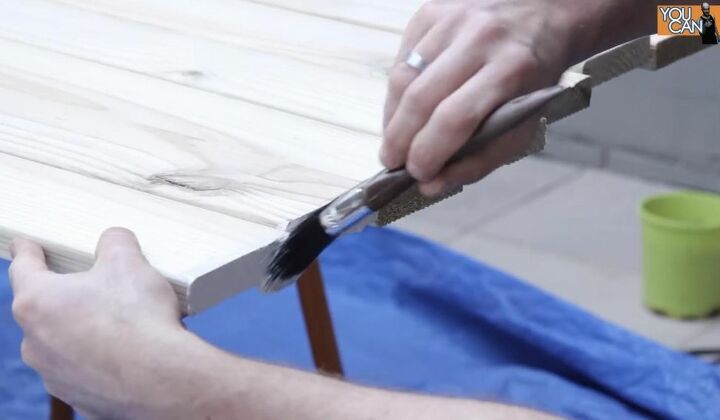

Seal End Grain

I painted the end grain of my pine decking boards with white paint to seal and make the wood last longer. Even though the wood is pressure treated, the paint will protect it and make it last even longer.

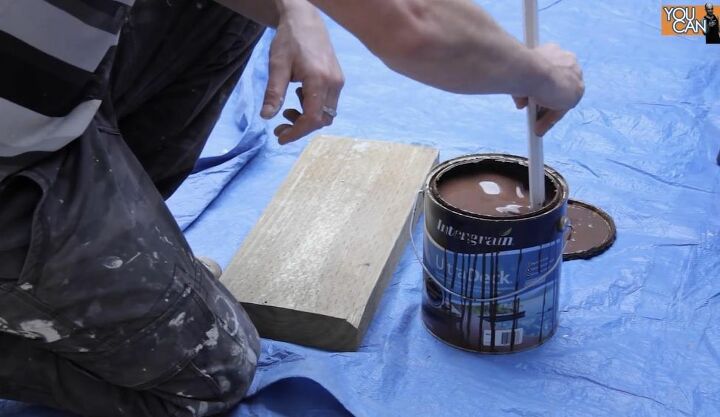

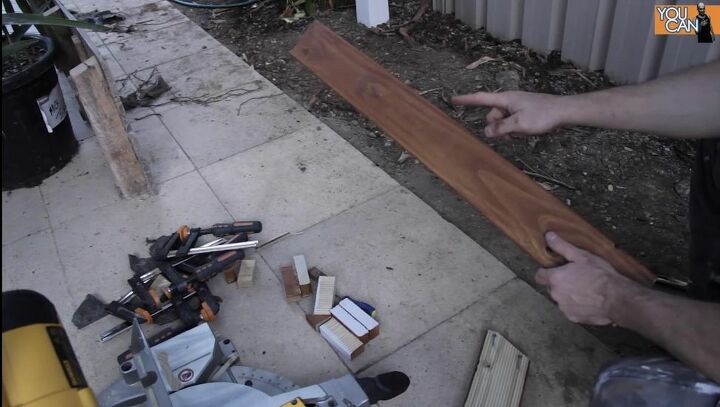

Stain Decking Boards

I applied several coats of stain to the boards in order to cover the green tint from the pressure-treating and then applied a clear coat over the top. As I painted it on, the stain finish became darker and richer.

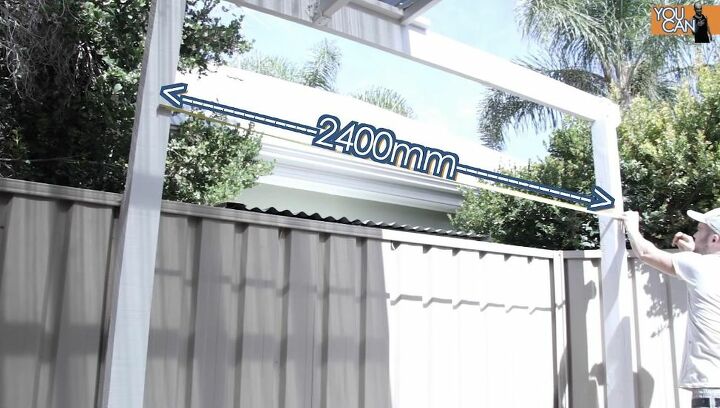

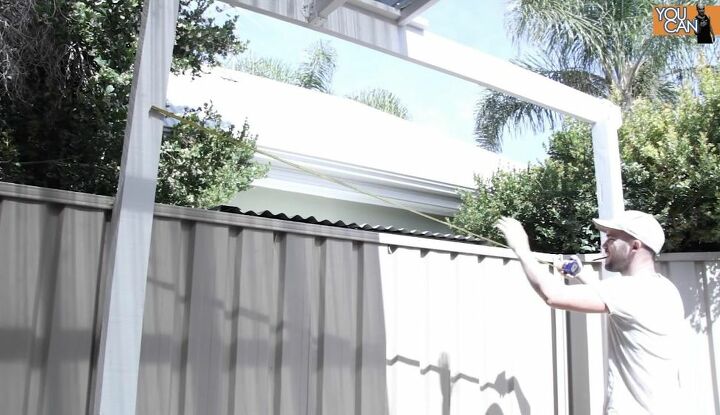

Measure Opening for Slats

I measured the distance between the posts on my pergola, from the center of one post to the center of the other post to determine the length to cut my boards. Measure the opening in the space you want to attach your decking between and make your cuts accordingly.

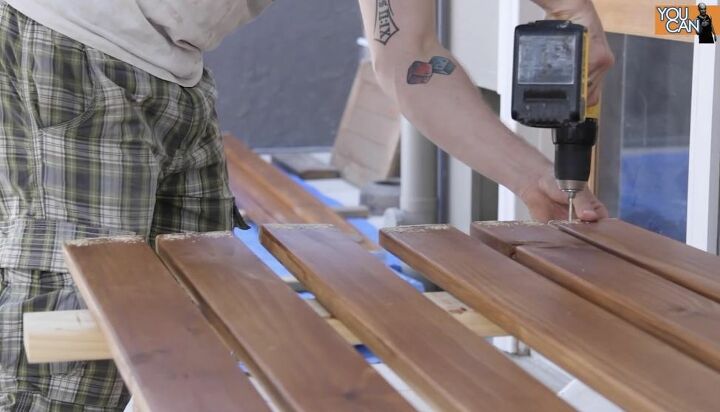

Pre-drill Holes in Boards

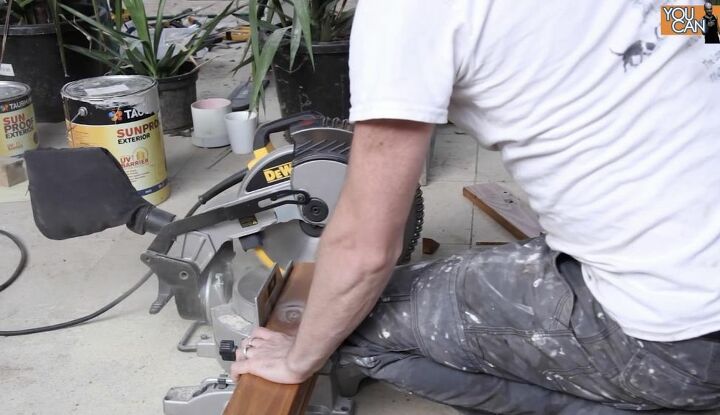

To attach the decking boards to the posts, I wanted to use screws and so I pre-drilled holes into the timber to make sure it would not split as the screws went through it. I used a square and measured 20mm in from each edge. I pre-drilled two holes on each end of the boards for the screws I would attach the boards to the posts with.

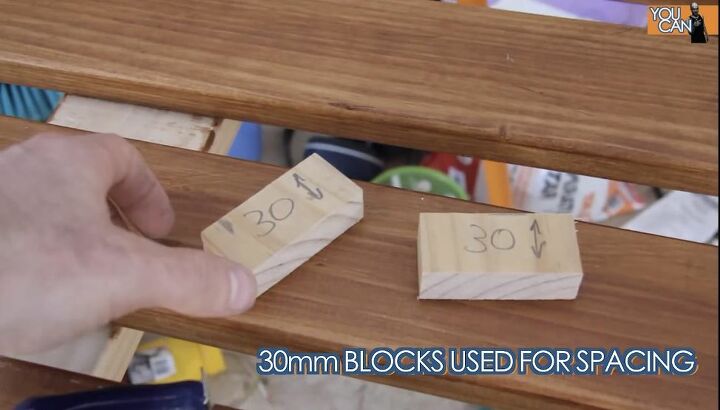

Cut Spacer Blocks

To make sure that I accurately spaced the boards as I was hanging them, I cut some 30mm blocks of wood for spacers between the decking boards. Decide how much space you want to allow between your slats and cut your spacers to size.

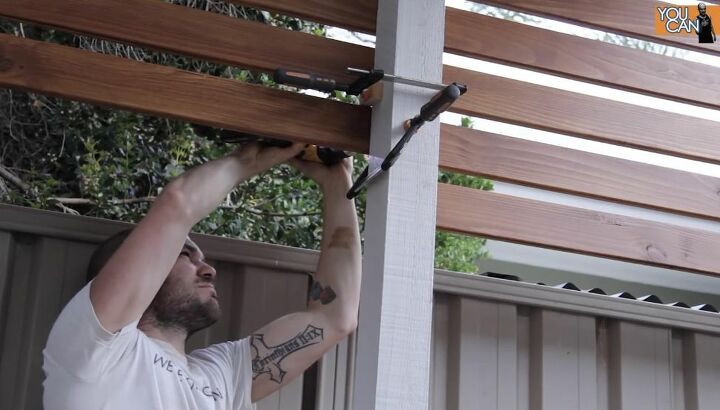

Attach Decking Boards to the Pergola

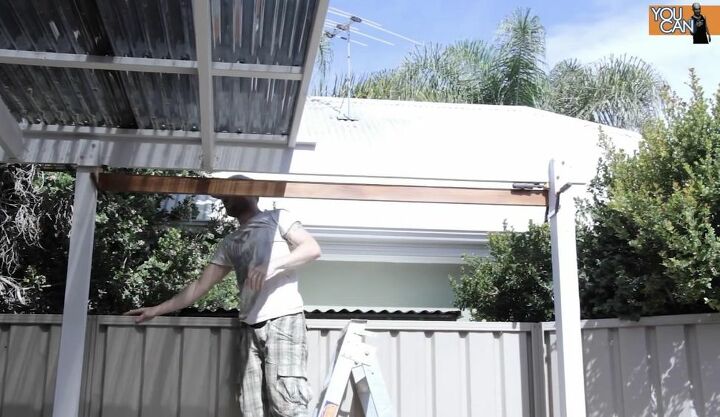

I chose to start hanging my boards from the top down because I knew that the top board needed to be just below the joist and that the bottom board could end up anywhere. I attached the boards with a drill and screws into my predrilled holes. As I went along, I got into a groove with my boards of measure, cut, pre-drill, and hang. I cut the ends to size and then at the end of each section I applied white paint to the cut ends. Use quick clamps if you have them available to you to make this step easier and less tedious.

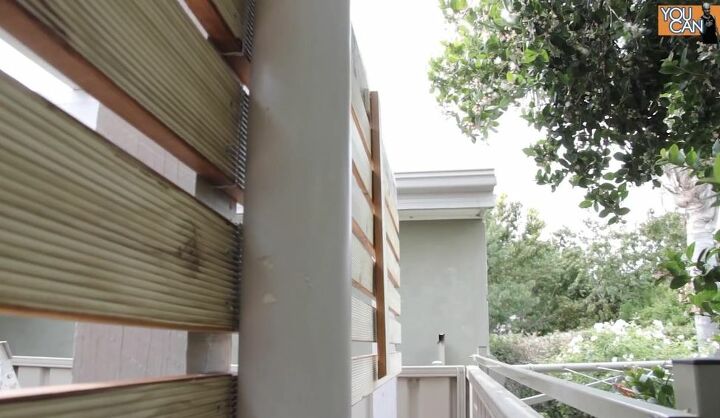

Attach Vertical Slats to the Back of Screen

I attached a vertical board through the center of the back of each set of slats and then painted the back of the screen facing the neighbors so that it was a nicer view for them from their yard. The vertical piece added a bit more support and rigidity to the privacy screen structure and the paint gave a finished appearance to the project from the outside looking in. I chose to paint the boards, but you may want to stain both sides of yours for a matching finish from both views.

I am so happy with the design appeal and function of the stylish privacy screen and love how it added privacy without making the space feel closed in or darker. The wood slats bring warmth to the backyard and pergola area while making the space feel polished and complete. Slat wood privacy screens can make a huge difference in the atmosphere of a small backyard that is very close to a neighbor. This would be perfect for climbing flowers or plants to grow to reach and envelop for an even more private appearance!
